90cm Roll Slitter

High-Speed Roll Slitter for
Continuous DTF Transfer Production
90cm Max Roll Width – 12m / min

90cm Roll Slitter

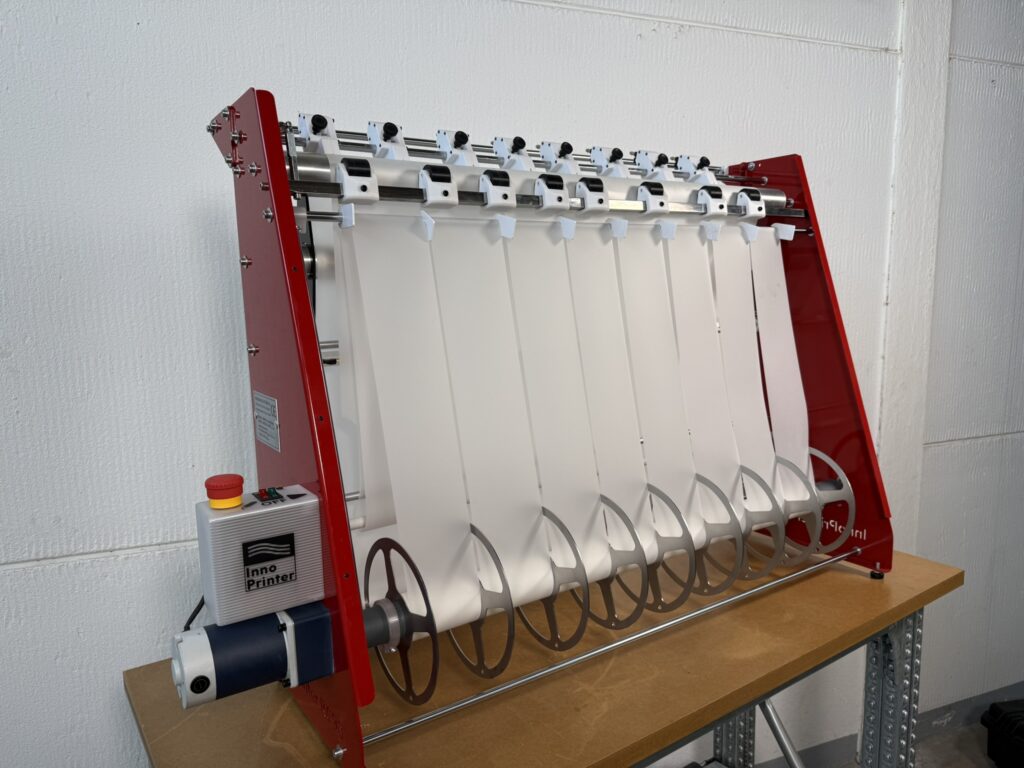

The InnoPrinter high-speed wide-format roll slitter is engineered to convert extra-wide transfer media into narrower production rolls, delivering maximum efficiency for large-scale textile decoration workflows.

  • Convert 90cm wide-format media into production-ready rolls

Designed for media up to 900mm wide, the slitter allows operators to quickly produce multiple narrower rolls tailored to garment sizes, print layouts and specific production requirements.

  • Built for industrial DTF transfer production

Ideal for high-volume DTF workflows, the machine dramatically reduces the time and labour involved in manually trimming individual transfers. Converted rolls can then be applied continuously using InnoPrinter MK series heat presses for extremely high production output.

  • Fast setup with simple width adjustment

Operators can quickly reposition the cutting system to create different roll widths with minimal downtime, making the machine highly adaptable for changing jobs and varied production runs.

  • Safe, reliable operation for continuous use

Pneumatically controlled cutting blades provide smooth and accurate slitting performance while automatically retracting when the machine stops, helping to maintain safe operation in busy production environments.

Technical Specifications

Dimensions
Length:1,200mm
Width:500mm
Height:900mm
Weight:55kg
Max Master Roll Width:900mm
Min Cut Roll Width:50mm
Operating Characteristics
Speed:12m / min
Blade Assemblies Available:Pneumatic Only
Standard No. Blades:8
Max Blades:14
Power
Voltage:220/230v – 50Hz
Peak Consumption:45W
Connection:1P + N + Ground
Compressed Air
Air Connection:6mm Push Fit
Air Pressure:6 bar
Air Consumption:~1 litre/min
General
Noise Level:LpA = 74 dB(A)
Standard Warranty:12 months (limited)
